| Tên thương hiệu: | PRECISION |
| Số mẫu: | VTS-10 |
| MOQ: | 1 |
| giá bán: | $6000 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 100/month |
Our Precision Vibration Testers are engineered for unparalleled accuracy and control, featuring an advanced 8-channel vibration controller. This powerful combination is specifically designed to meet and exceed the rigorous requirements of MIL-STD-810, Method 514 (Vibration). By allowing for simultaneous multi-point vibration measurement and control, our system provides a comprehensive and auditable solution for evaluating the durability and performance of your products in the demanding environments they will face.
MIL-STD-810, Method 514 Compliance: Fully configured to execute all the demanding vibration profiles and test procedures outlined in MIL-STD-810, Method 514. This includes tailoring to categories such as basic transportation, aircraft (fixed wing, rotary wing), and ground vehicles.
8-Channel Vibration Control: The sophisticated controller supports up to eight channels for real-time data acquisition and control. This allows for simultaneous monitoring of multiple critical points on your test article, providing a more complete picture of its dynamic behavior.

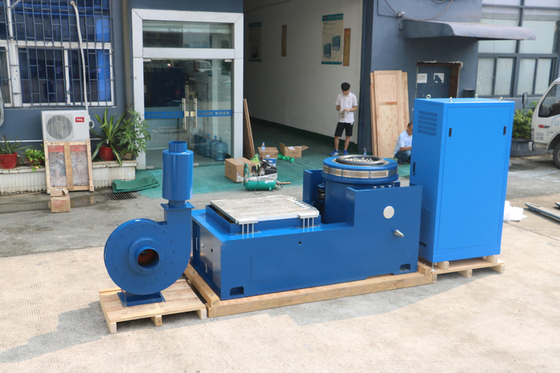

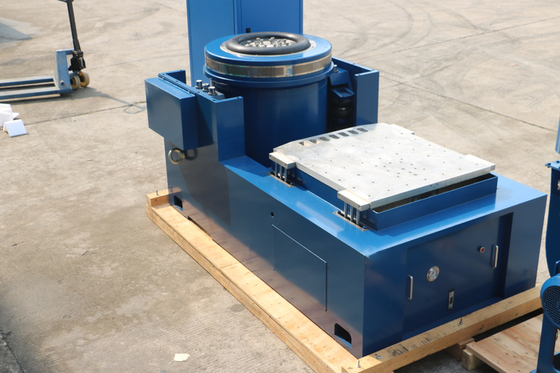

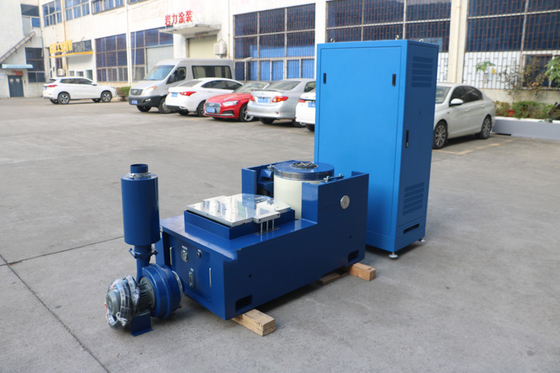

High-Precision Electrodynamic Shaker: Utilizes advanced electrodynamic technology for accurate, repeatable, and controlled generation of complex vibration waveforms, including sine, random, shock, and mixed-mode tests.
Advanced Digital Control System: The powerful control software not only executes MIL-STD test sequences with precision but also allows for advanced analysis, including resonance searches, dwell times, and multi-axis simulations.
Comprehensive Multi-Point Data Acquisition: The 8-channel system captures a wealth of real-time data (acceleration, displacement, etc.) from multiple locations on the product, enabling in-depth analysis of structural responses, stress points, and potential failure modes.
Robust & Durable Construction: Built with industrial-grade components and a reinforced structure for continuous operation and long-term reliability in demanding test environments.
Customizable Test Fixtures: Our engineering team designs and manufactures application-specific fixtures to securely mount diverse military equipment, optimizing vibration transmission and ensuring test integrity.
Enhanced Safety Protocols: Incorporates multiple safety interlocks, emergency stops, and features vital for handling valuable and often sensitive test articles.
Aerospace & Defense: Qualification of avionics, missile components, ground support equipment, and ruggedized electronics for flight, ground vehicle, or shipboard environments, with multi-point monitoring.
Military Vehicle Components: Durability testing of components, sub-assemblies, and systems for tanks, armored vehicles, and tactical trucks.
Naval & Marine Systems: Vibration and shock testing of equipment intended for naval vessels, submarines, and maritime platforms.
Portable & Field Equipment: Reliability validation of ruggedized electronics, communication devices, and sensors for soldier-borne or field deployment.
Regulatory Compliance & Certification: Essential for obtaining necessary military certifications and clearances (e.g., MIL-STD-810) for market entry and deployment.
Research & Development: Advanced structural dynamics analysis and new product validation with detailed multi-point data.
Unmatched Accuracy & Control: The 8-channel controller provides precise control and measurement, ensuring test results are both accurate and reliable for MIL-STD-810, Method 514 compliance.
Comprehensive Product Insight: Multi-point data acquisition allows for a deeper understanding of product behavior, helping to identify and address weaknesses that single-point testing might miss.
Accelerated Qualification: Streamlines the complex and lengthy MIL-STD testing process, significantly speeding up market entry for defense-related products.
Reduced Field Failures: Proactively identifies and mitigates potential failure points, guaranteeing robust performance in extreme operational and combat environments.
Auditable Data: Generates detailed, auditable reports with multi-channel data, essential for compliance documentation and root cause analysis.
Technical Specifications:
| Rated Sine/ Random/ Shock Force | 1,100 kgf/1.100 kgf/2200 kgf | Armature Mass | 13 kg |
| Frequency Range | 5-3500 Hz | Inserts Size (Standard) | M10 |
| Max./Continuous Displacement p-p | 51 mm/51 mm | Load Attachment Points (Standard) | 25 |
| Max. Velocity | 2.0 m/s | Natural Frequency-Thrust Axis | <3Hz |
| Max.Sine/ Random Acceleration | 85/60g | Max. Vertical Load Support | 300 kg |
| Armature Diameter | 335 mm | Stray field @152 mm above table | ≤lmT (10 gauss) |
| Fundamental Resonance Frequency | 3,000 Hz (nom) ±5% | Dimension LxWxH | 940 mmx715 mm* 780 mm |
| Allowable Armature Overturning Moment | 300 Nm | Weight (Uncrated) | 1.000 kg |
Ready to elevate your vibration testing with multi-point control and precision to meet MIL-STD-810, Method 514 standards? Contact our experts today to discuss your requirements for a Precision Vibration Tester with an 8-Channel Vibration Controller.
